GE IS220UCSAH1A Control panel

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

IS220UCSAH1A is the processor module of GE Mark VIe control system:
1、 Interface and connector

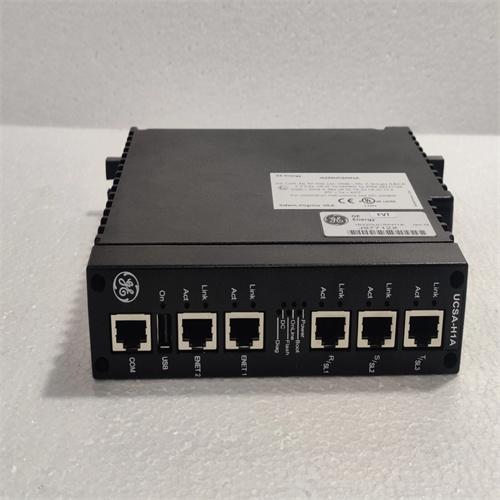

Front panel interface: The control panel of IS220UCSAH1A includes six female socket connectors and one USB port, which are used for communication with other Mark VI, Mark VIe, or EX2100 excitation controllers, as well as maintenance and operator stations.
Ethernet connection: Ethernet connection is achieved through socket connectors, supporting high-speed data transmission.
2、 Status indicator light
LED indicator lights: The control panel is equipped with multiple LED indicator lights, including the Link/Act LED indicator light located on the left side of the front panel, and a row of indicator lights located in the center of the panel, labeled with "Power", "Start", "Online", "Flash", "DC", and "Diagnostic". These indicator lights are used to display the working and communication status of the module.
3、 Installation and Layout
Installation method: The IS220UCSAH1A module adopts a compact single box design and supports redundant system deployment. It can be installed in a cabinet through a base, and up to three components can be installed side by side to meet the requirements of miniaturized cabinets.

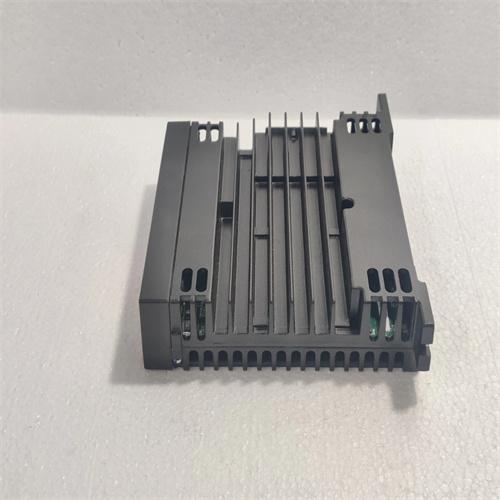

Ventilation design: The side of the module is equipped with grille openings, allowing air flow and achieving natural heat dissipation without the need for additional cooling fans.
4、 Environmental adaptability

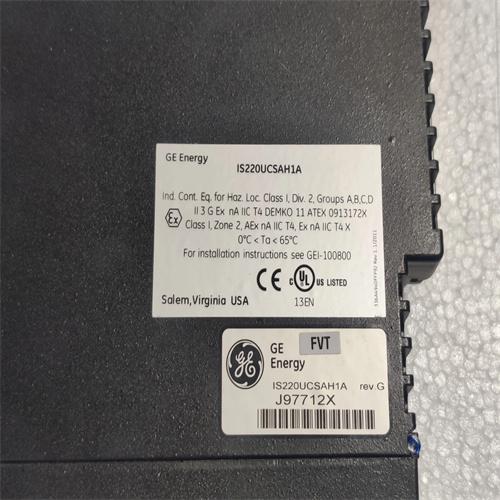

Working temperature: The IS220UCSAH1A module is capable of stable operation within a temperature range of 0 to 65 degrees Celsius and is suitable for various industrial environments.
Protection level: The module design meets industrial standards, has high reliability and anti-interference ability, and is suitable for critical control applications.
