B&R servo controller 8V1090.00-2 module for spot sales

B&R servo controller 8V1090.00-2 module for sale and shipment

Item NO.:
8V1090.00-2
Payment:
T/T
Color:
Contact salesperson Vicky.xia via WeChat or email
Shipping Port:
Xiamen China
Lead Time:
Contact Vicky.xia via WeChat
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia
Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

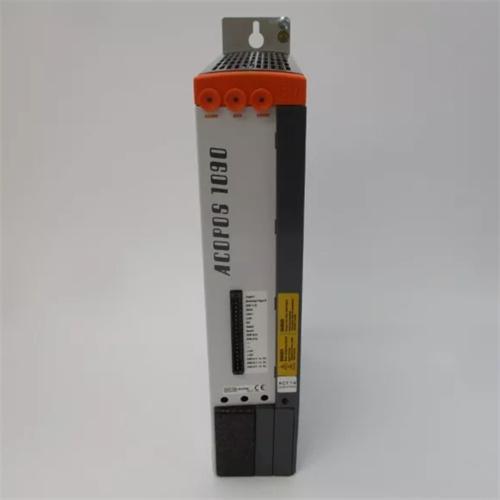

8V1090.00-2 is a high-performance servo controller module from the B&R ACOPOS series:
1、 Core functions
Three ring control mode: supports position, speed, and torque control modes, and can achieve high dynamic response trajectory tracking and synchronous control through parameter adjustment, suitable for multi axis linkage scenarios.
Process integration capability: Built in electronic gear, electronic cam, flying saw, color control and other functional modules, supporting complex processes such as overlay control and drum sequence generation, optimizing equipment operation efficiency.
Security protection mechanism: Integrated fault detection and protection circuits for overvoltage, overcurrent, overheating, undervoltage, etc., equipped with line filters, braking resistors, and electronic safety restart functions to ensure stable system operation.
2、 Technical parameters

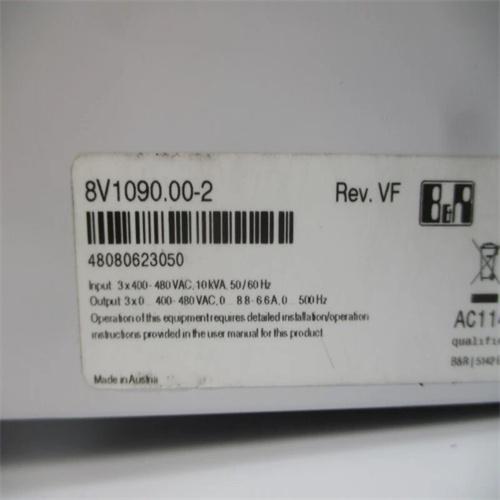

Electrical specifications: Input voltage is three-phase 400-480VAC, frequency 50/60Hz, rated current 8.8A, rated power 4kW, DC bus capacitor 470 microfarads, nominal input voltage 24VDC.
Control performance: Control cycle period of 50 μ s, communication cycle period of 400 μ s, maximum output frequency of 600Hz, supporting IEC61131 standard controller function and PLCopen motion control function block.

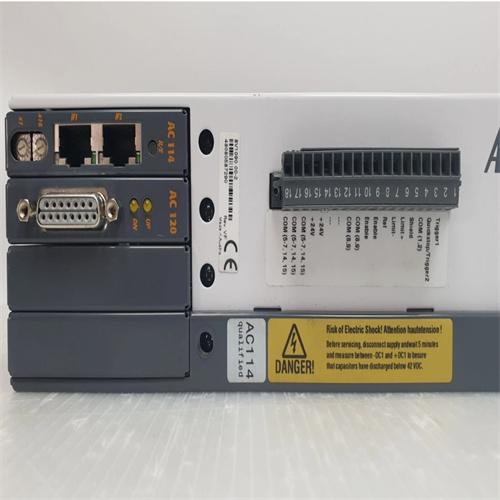

Interface configuration: Provides 2 trigger inputs, supports driver based automation, and can connect encoders, sensors, and actuators.
3、 Functional characteristics
Modular design: adopting a mechanical structure of plug-in modules, supporting plug-in joint connections, facilitating the expansion of multi axis systems, and adapting to compact equipment layouts.
High precision control: Complex control algorithms are implemented through high-speed digital signal processors, combined with encoder feedback to achieve nanometer level positioning accuracy, meeting the needs of industries such as semiconductors and 3C electronics.
Electromagnetic compatibility: Equipped with filters specified in the CE guidelines, verified through laboratory and on-site testing, it can maintain stable performance even in harsh industrial environments.
4、 Application Fields
Numerical Control Machine Tool: Through rapid start stop and contour transition optimization, the transition time of the feed system is shortened, the machining accuracy and efficiency are improved, and it is suitable for five axis linkage machining centers.
Printing and packaging: Utilizing electronic cam function to achieve multi axis synchronous motion, adapting to processes such as overlay control and drum sequence generator, optimizing printing quality, and reducing overlay errors.
Robot system: Eliminating gear backlash through multi motor backlash control mode, adapting to high-precision positioning scenarios such as radar antenna turntables, and improving motion stability and trajectory repeatability accuracy.
5、 Installation and maintenance
Installation requirements: At least 80mm of space should be left above and below the drive to ensure air circulation; The shell needs to be properly grounded, with a protection level of IP20, suitable for general industrial environments.
Environmental adaptability: It can operate at a working temperature of 5-40 ℃, with a maximum installation altitude of 2000 meters. If it exceeds this altitude, it needs to be downgraded by 0.88 Aeff per 1000 meters.
Fault handling: Supports overload protection, short circuit and ground fault protection, provides open circuit monitoring response threshold (about 385mA) and output current limit (1A), facilitating quick location of the fault point.
