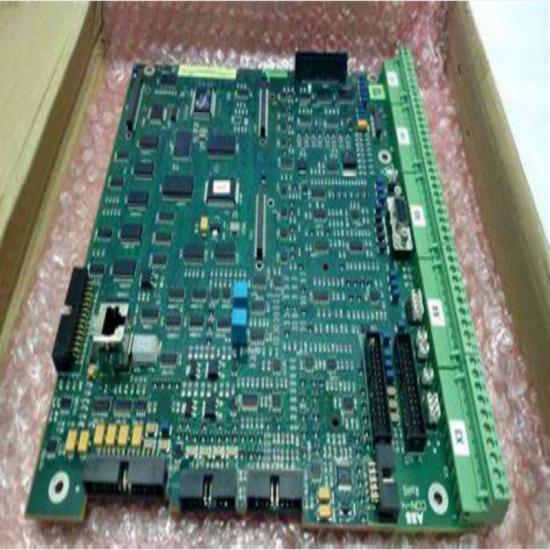

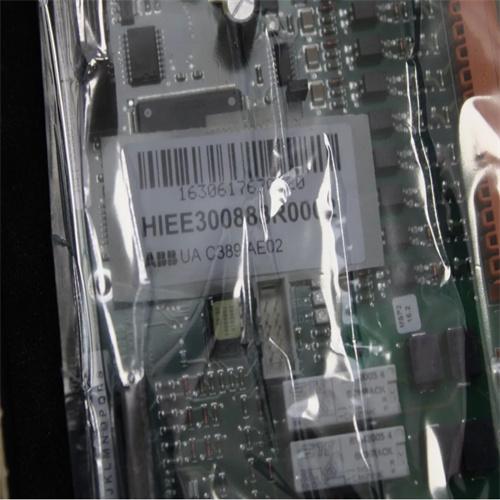

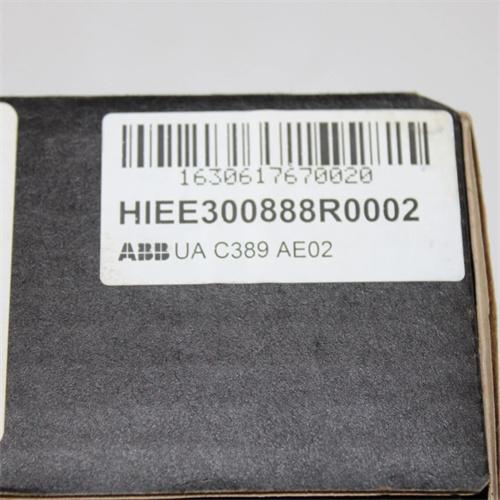

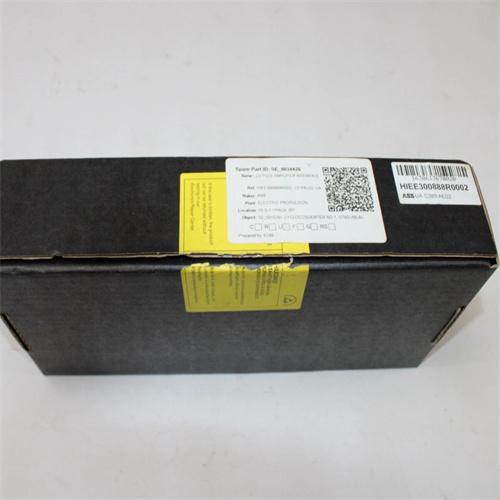

ABB UA C389 AE02 main control panel

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

Technical Analysis of UA C389 AE02 Control Module

1、 Product positioning and core functions

Model attribution: UA C389 AE02 is a high-performance control module in ABB industrial control systems, designed specifically for complex industrial scenarios, suitable for logic control, excitation regulation, and distributed automation tasks.

Core functions:

Support multi-mode excitation regulation such as constant current control and constant voltage control to meet the stable operation requirements of the motor;

Integrated fast logical operation capability, suitable for real-time control and high-precision data processing;

Compatible with Ethernet/IP, Modbus TCP/IP and other protocols, enabling cross system data exchange.

2、 Hardware and performance parameters

Hardware Features

Control interface: Supports analog input/output (requires specialized modules or transmitters), digital channels, and multi protocol communication interfaces;

Processing capability: Built in high-performance CPU and independent memory, capable of handling complex control algorithms and large-scale data.

Protection and compatibility

Modular design, protection level meets industrial environment requirements (such as anti-interference, overvoltage/overcurrent protection);

Scalable access to ABB Advant OCS, third-party PLC, and DCS systems.

3、 Typical application scenarios

Industrial automation:

Motor excitation control (such as high-voltage motor speed regulation and stability management);

Implementing logical operations and remote I/O management in distributed control systems.

Power management:

Power system protection (monitoring and response to abnormal states such as overcurrent and undervoltage);

Integrate with frequency converters and servo systems to optimize energy allocation efficiency.

4、 Maintenance points

Maintenance points:

Regularly check the connection status of communication interfaces to prevent signal attenuation caused by dust or corrosion;

Use ABB's official configuration tool for parameter calibration and firmware upgrade.

5、 Precautions

Sensor signals (such as temperature and pressure) need to be converted and connected through dedicated modules or transmitters, and direct connection to analog channels is prohibited;

In distributed architecture, compatible industrial network switching devices (such as SCALANCE series) need to be configured to ensure data transmission stability.
