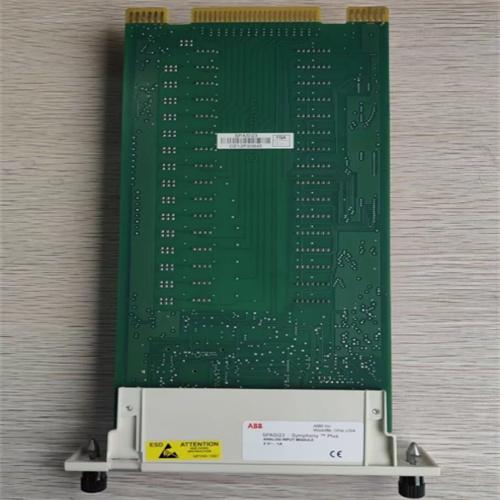

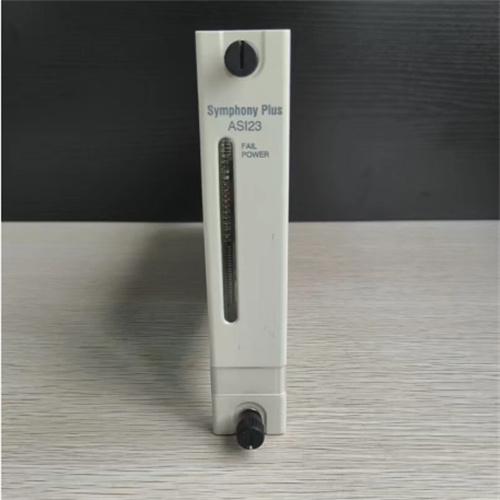

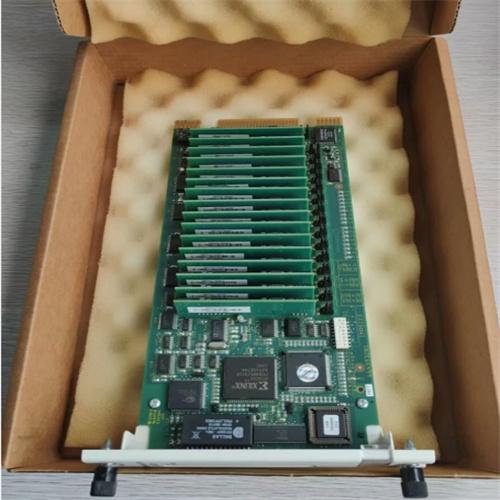

ABB SPASI23 high-precision input module

ABB SPASI23 high-precision input module free cross provincial shipping

Item NO.:
SPASI23
Payment:
T/T
Shipping Port:
Contact salesperson Vicky.xia via WeChat or email
Lead Time:
Contact Vicky.xia via WeChat
Order(MOQ):
1

Product Detail

Sales manager: Vicky.xia
Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

SPASI23 is a high-precision analog input module produced by ABB, mainly used in industrial automation and process control systems:
1、 Core functions
Signal acquisition: Collect on-site sensor signals such as temperature, pressure, flow rate, current, and voltage, and convert them into digital signals for DCS/PLC system processing.
Signal conversion: By using an internal high-precision analog-to-digital converter, continuous analog signals are converted into discrete digital signals.
Signal isolation and conditioning: Electrical isolation of input signals effectively suppresses electromagnetic interference introduced on site and protects the safety of system side circuits. Simultaneously filter and adjust the signal to improve measurement accuracy and stability.
2、 Technical features
High precision: Using a 16 bit ADC, the effective accuracy can reach ± 0.05%~± 0.1% FSR, ensuring the accuracy of measurement data.
High resolution: It can accurately measure changes in input signals, meeting the needs of rapid process variable monitoring.
Multiple input types: Supports multiple analog input signal types, including voltage (± 10V, ± 5V, 0-10V, 0-5V), current (4-20mA, ± 20mA), thermocouple (J, K, T, E, R, S, B types), etc.
Isolation performance: Channel isolation 1500V AC, common mode rejection ratio ≥ 120dB, strong anti-interference ability.
Wide working temperature range: The working temperature range is -40 ℃~+70 ℃, suitable for harsh industrial environments.
Maintenance friendly: Supports hot swapping, with an average time to repair (MTTR) of less than 15 minutes, making it easy to deploy and integrate quickly.
Long life cycle: Designed for a lifespan of over 15 years, with a failure rate of less than 0.1% per year, suitable for long-term operating scenarios.
3、 Technical parameters
Number of channels: There are two versions available: 23 channels (for Symphony Plus system) and 8 channels (for Bailey Legacy system), which need to be confirmed based on the specific system model.
Sampling rate: up to 100 Hz, meeting the requirements of fast process variable monitoring.
Protocol support: Some versions support HART protocol penetration for easy communication with smart sensors.
4、 Application scenarios
The SPASI23 module is widely used in various industrial control and monitoring applications, including process control, temperature monitoring, pressure monitoring, flow control, etc. Especially in the fields of industrial process control such as power plants, chemicals, and metallurgy, the SPASI23 module plays a crucial role as the "signal acquisition front-end" of the control system.
5、 Advantages and disadvantages analysis
Advantages:
High precision and stability: Low temperature float design, with a precision loss of only 0.02% at high temperatures (better than the industry standard of 0.1%).
Easy to use and configure: Provides easy-to-use configuration software and interfaces, allowing users to configure and adjust as needed.
Multiple input signal types: support multiple analog input signal types to meet the needs of different sensors and switches.
Strong isolation and anti-interference capabilities: ensuring stable operation in harsh environments.
Long life cycle: suitable for long-term operation scenarios.
Disadvantages:
Lower channel density: The 8-channel version occupies more rack space compared to modern modules (16/32 channels).
Insufficient protocol scalability: Only supports Modbus, requiring additional gateway access to modern industrial networks such as Profinet/EtherNet/IP.
High cost: The unit price is 2-3 times that of similar domestic products, but the life cycle cost has advantages.
