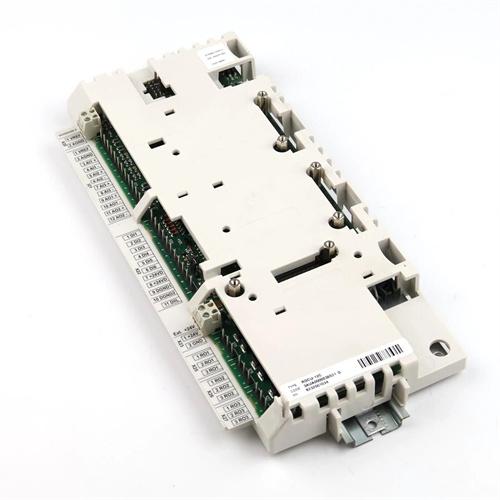

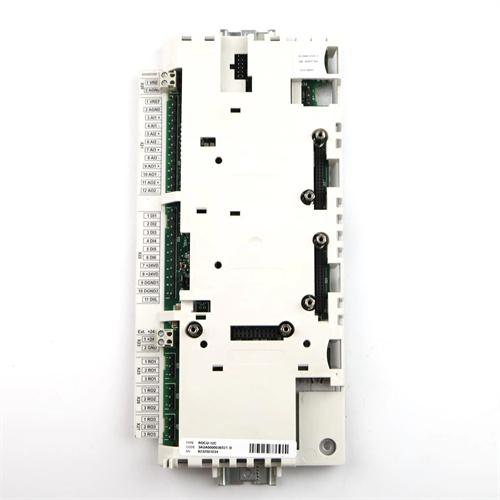

ABB RDCU-12C industrial control module, brand new, produced by FedEx, DHL or UPS

RDCU-12C industrial control module inventory original, brand new, one-year warranty

Item NO.:
RDCU-12C
Payment:
T/T
Shipping Port:
Contact salesperson Vicky.xia via WeChat or email
Lead Time:
Contact Vicky.xia via WeChat
Order(MOQ):
1

Product Detail

Sales manager: Vicky
Email: Vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

Core analysis of ABB RDCU-12C industrial control module:
1、 Core positioning and functions
Product Model: RDCU-12C (ID: 3AUA0000036521)
Manufacturer: ABB
Applicable system: ACS800/ACS880 series frequency converter
Core functions:
High performance motor control:
Supports direct torque control (DTC) (torque response time<2ms), suitable for high dynamic load scenarios such as mine hoists and steel mills.
Closed loop vector control: compatible with incremental encoders (TTL/HTL), achieving high-precision control of speed/position (accuracy up to ± 0.01%).
Multi protocol communication:
Standard fiber optic interface connection power unit;
Expand fieldbus such as PROFIBUS, PROFINET, Ethernet/IP through adapters.
Expand I/O capability:
Digital input: 7 channels (24V DC, filtering time 1ms);
Digital output: 3-channel relay (24V DC/115-230V AC, 2A);
Analog input: 3 channels (± 10V/0-20mA, 12 bit resolution);
Analog output: 2 channels (0-20mA, 10 bit resolution).
Diagnosis and maintenance:
Real time recording of fault logs, supporting automatic backup/recovery of parameters, and built-in flash storage for configuration saving.
2、 Hardware configuration and technical parameters
Encoder interface: Incremental encoder (TTL/HTL), supporting a resolution of 10000 PPR
Auxiliary power supply: reference voltage output: ± 10V ± 0.5% (10mA max); Auxiliary power supply:+24V ± 10% (250mA max)
Environmental adaptability: Operating temperature: -45 ℃ to 70 ℃; Protection level: IP20 (standard); Certification: CE, cULus
Mechanical design: Dimensions: 177mm × 132mm × 65mm; plug-in card slot installation, with locking buckle for shock absorption
Software dependency: It needs to be used in conjunction with ABB's dedicated application software, supporting programming languages such as function codes, C language, ladder diagrams, etc
3、 Typical application scenarios
High dynamic load control:
Mine hoist: DTC control ensures fast start stop and safe braking, and resistance to impact and vibration.
Rolling mill: multi motor synchronous control, thickness deviation control accuracy ± 0.01%.
Process optimization control:
Constant pressure water supply in the water plant: By adjusting the frequency of the pump group through PID, the pressure in the pipeline network is dynamically maintained (pressure fluctuation ≤ 0.1 bar).
Chemical batch ingredients: sequential control of multiple pump flow rates, formula error<0.5%.
Energy consumption management:
Air compressor group control: Intelligent start stop equipment based on pressure feedback, with an energy-saving rate of 15-30%.
4、 Core advantages of the product
Modular hot plugging: complete replacement within 5 minutes, reducing downtime losses by 90%.
Industrial grade reliability: wide temperature design (-45 ℃~70 ℃), anti electromagnetic interference in accordance with IEC/EN 61800-5-1 standard.
Seamless system integration: Supports Harmony Block and Rack I/O systems, compatible with existing automation architectures.
Real time diagnostic capability: Fault logs are accurate to the millisecond level and support remote fault prediction.
User precautions:
Extreme working condition protection: It is recommended to install an IP54 protective cover in high temperature/high humidity environments.
Maintenance suggestion: Regularly clean the fiber optic interface to avoid data transmission packet loss; Parameter configuration must follow ABB's official guidelines.
Discontinued alternative solution: ACS880 series is recommended to be upgraded to RDCU-22C (compatible with existing functions and enhanced communication bandwidth).
