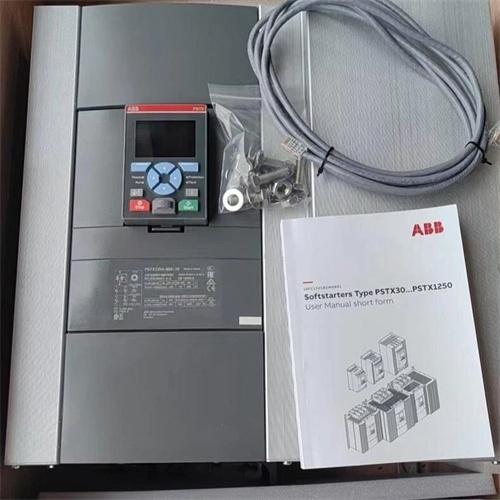

ABB PSTX45-600-70/PSTX4560070 soft starter

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

PSTX45-600-70 is a PSTX series fully intelligent soft starter launched by ABB

Core parameters

Rated power: 22kW, suitable for three-phase 400VAC voltage level.

Rated current: 45A, can reach 640A in internal mode, meeting different load requirements.

Working voltage: 208-690V AC, compatible with various industrial power grid standards.

Control voltage: 100-250V, 50/60Hz, compatible with most control systems worldwide.

Functional advantages

Built in bypass contactor: automatically switches the bypass when the motor is running at full speed, reducing thyristor heating and improving system efficiency.

Electronic overload protection: implemented through the I ² t algorithm, supports programming of overload trip levels (10-30 levels), and has the function of detecting phase to phase current imbalance. When the difference exceeds 65% and lasts for 3 seconds, the trip protection is triggered.

Multi start mode: supports six standard start modes including soft start/soft stop, sudden jump soft start, current limiting start, full pressure start, double slope start, and linear acceleration start/stop, as well as three control options including preset low speed, professional pump control, and intelligent motor braking.

Communication and Expansion: Supports DPI communication (such as DEVICENET), with optional PROFIBUS DP module for remote control and data exchange.

Compact design: Integrated with bypass contactor, overload protection and other functions, reducing installation space requirements.

Typical application scenarios

Industrial field: Suitable for equipment such as compressors, pumps, and conveyor belts, reducing mechanical impact and extending equipment life through smooth start-up.

In the commercial field, it is used for systems such as air conditioning and elevators in shopping malls to reduce the impact of starting current on the power grid and optimize energy efficiency management.

Special scenario: Supports pump control and intelligent motor braking functions, which can meet the process requirements of industries such as water treatment and chemical engineering.
