ABB PM902F Power Module

ABB PM902F Power Module New in stock

Item NO.:
PM902F
Payment:
T/T
Shipping Port:
Contact salesperson Vicky.xia via WeChat or email
Lead Time:
Contact Vicky.xia via WeChat
Goods Stock:
500

Product Detail

Sales manager: Vicky.xia
Email: vicky@kerienplc.com
Mob(Whatsapp/Wechat) :+ 86 13695017671
QQ：259680581
Skype :+ 86 13695017671

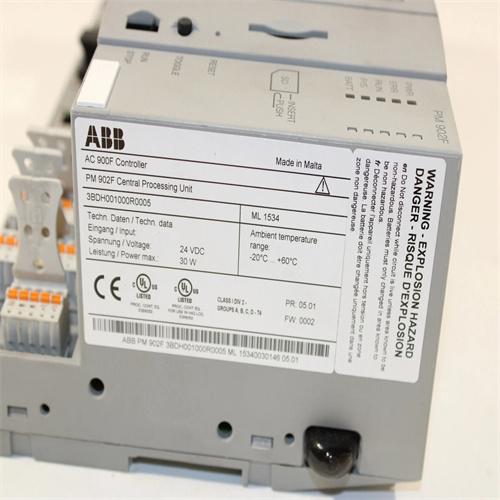

PM902F is the core power module (CPU controller) of ABB AC900F series DCS system, with multi interface communication, redundancy support, high scalability and stable operation capability, suitable for medium and large industrial automation projects:
1、 Core parameters
Hardware configuration
Interfaces: 4 Ethernet interfaces (supporting system bus redundancy, Modbus TCP/IP, IEC 60870-5-104 protocol), 1 diagnostic interface, 2 serial interfaces (RS-232/RS-485, supporting Modbus RTU/ASCII or IEC 60870-5-101 protocol).
Scalability: Two slots are used for communication interface modules (such as PROFIBUS DP master station module, supporting line redundancy), which can directly connect up to 10 S700 local I/O modules (mixed input/output).
Performance: 800MHz CPU clock, 24MB controller memory, 8MB battery buffered SRAM, 16MB DRAM, ensuring high-speed data processing and real-time control.
Electrical parameters
Power: 1KW (some sources indicate 1200W), rated current 2.6A, output frequency 24kHz (standard kHz).
Power supply: External 24VDC power supply, operating voltage range of 5-24V.
Environmental adaptability: Operating temperature range of -20 ℃ to+70 ℃ (some scenarios support -10 ℃ to+55 ℃), environmental humidity of 5% to 95% (non condensing), suitable for harsh industrial environments.
2、 Functional characteristics
Redundancy and reliability
System redundancy: Supports CPU redundancy configuration (such as AC900FR), achieving high availability through dual controller hot standby switching.
Communication redundancy: PROFIBUS line redundancy is achieved through the CI930F module to achieve dual Sub-D plug connections, avoiding single point failures.
Data Security: The SD card slot supports program, data, and firmware storage, ensuring that data is not lost even in the event of a complete power loss.
Software and Programming
Development environment: Use Freelance Control Builder software for graphical programming (supporting languages such as FBD, LD, IL, etc.).
Transparent operation: Built in LCD screen and operation buttons, supporting parameter settings, firmware updates, program backup and recovery.
Security mechanism: Extended user management based on Windows user accounts, supporting centralized password management and password complexity rules.
3、 Application scenarios
Medium to large-scale industrial projects
Petroleum, chemical, power, water treatment: The number of on-site I/O connections ranges from tens to thousands, covering requirements from simple control to complex interlocking logic. For example, in the aggregate production line, PM902F achieves stable control of crushers, conveyor belts, and screening equipment through redundant configuration and PROFIBUS communication.
Mining, aluminum, and cement plants: With their high-speed data processing capabilities and stable communication performance, they achieve real-time monitoring and fault warning of production equipment, improving production efficiency and product quality.
OEM Solution
Combined with the Panel 800 operation panel, we provide customized control solutions for original equipment manufacturers, supporting multi screen display (up to 4 screens can be connected to the operator station), and improving operational efficiency.
