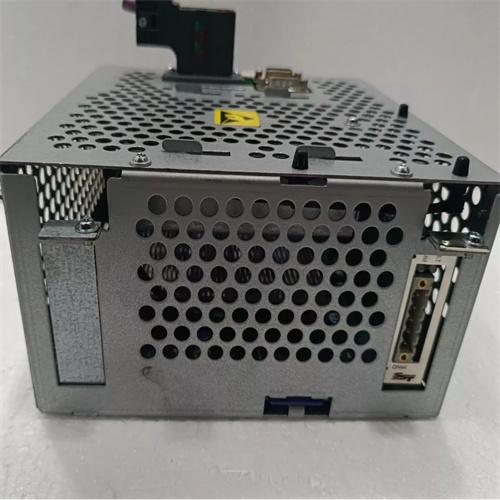

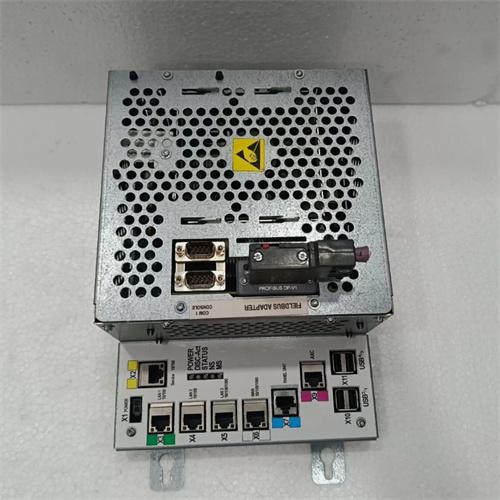

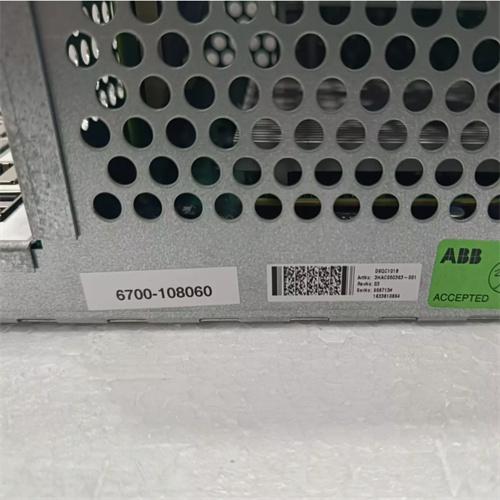

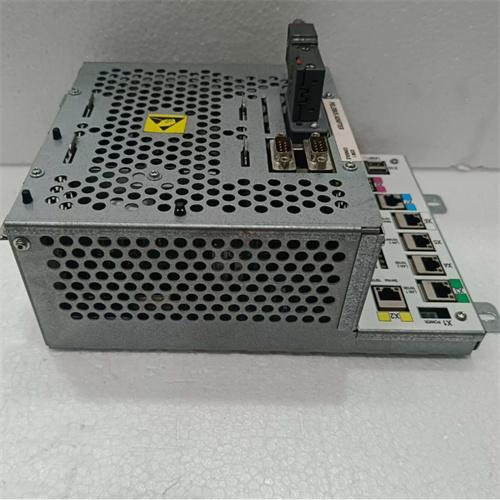

ABB DSQC1018 3HAC050363-001/DSQC1018 3HAC050363001 Robot host

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

Introduction to DSQC1018 3HAC050363-001 Controller Module

1、 Product Overview

Functional positioning: As the main computer of the robot system, it undertakes the core tasks of motion control, data processing, and instruction execution, directly controlling the movements of components such as joints and end effectors

Belonging to the ABB IRC5 series controller, it adopts modular design and supports independent replacement of faulty modules to reduce maintenance costs

2、 Technical features

High performance control

Adopting a 32-bit RISC architecture CPU, the instruction execution speed reaches 100 ns/line, the memory capacity is 512 KB, and it supports high-precision motion control and complex task processing

Implementing millisecond level real-time response through advanced algorithms to ensure the accuracy and smoothness of robot actions

Reliability assurance

The components have passed industrial grade certification, with a working temperature range covering -25 ℃ to 70 ℃, suitable for harsh industrial environments

User friendliness

Equipped with a graphical programming interface and standardized instruction set, supporting fast debugging and secondary development

3、 Technical specifications

Specific indicators for parameter categories

Model DSQC1018 3HAC050363-001

CPU type: 32-bit RISC processor

Memory capacity 512 KB

Communication interface supports industrial bus protocol extension

Working temperature -25 ℃~70 ℃

Protection level IP20 (to be used in conjunction with control cabinet)

Data synthesis from technical documentation and product specifications

4、 Application scenarios

Industrial automation: six axis robot control suitable for scenarios such as automotive manufacturing and electronic assembly

Complex task execution: welding, palletizing, precision assembly and other operations are achieved through multi axis collaborative control

5、 Maintenance suggestions

Fault prevention: Regularly check the mechanical wear and electrical contact status of associated actuators (such as valves and relays) to reduce the interference of external equipment failures on the control module

Module replacement: Utilizing modular design features, directly replacing faulty sub modules instead of the entire device, shortening downtime.

The standard warranty period for this controller module is 1 year and it supports express logistics delivery.
