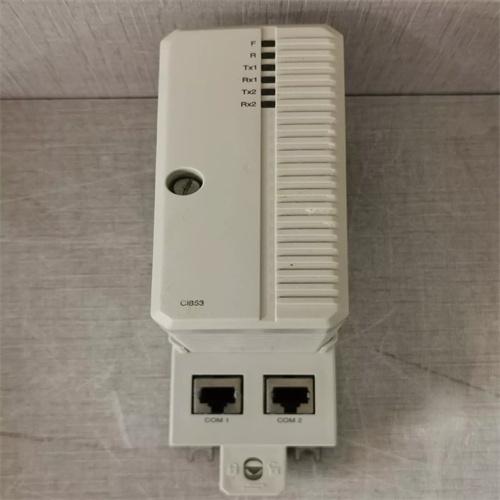

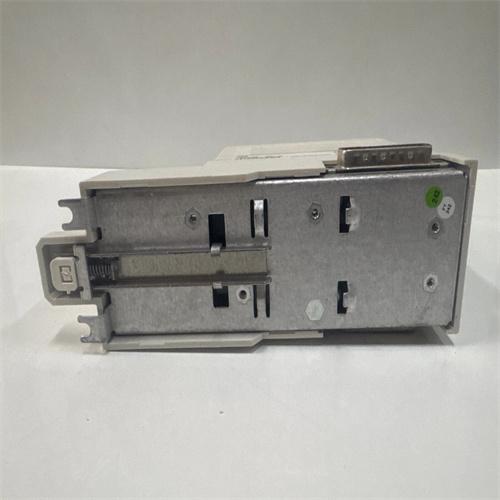

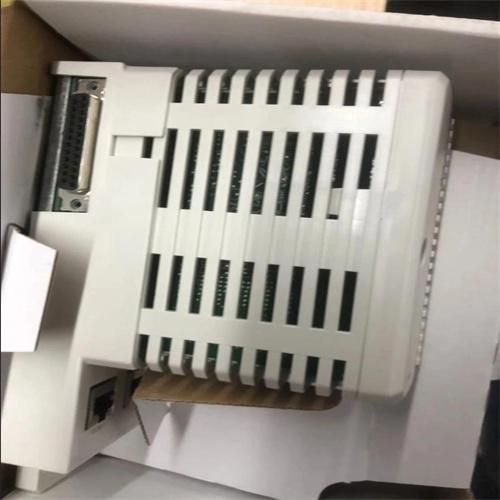

The CI853K01 communication interface module is a crucial component of the AC 800M series from ABB

1. Basic information

Model: CI853K01

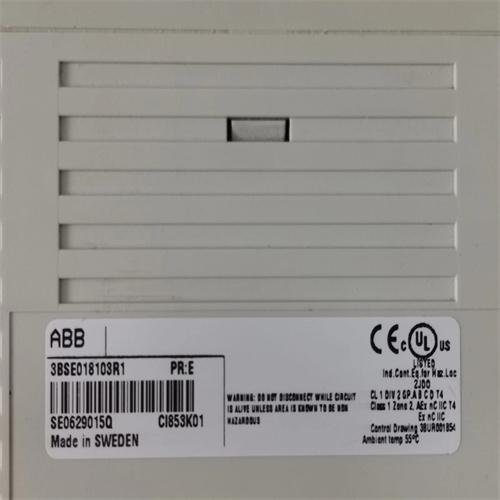

Material number: 3BSE018103R1

Type: Dual RS232-C communication interface module, also supports RS-422/RS-485 communication standards

Purpose: For data exchange in industrial automation systems, enabling data interconnection between different devices

II. Technical Parameters

Interface type:

1×RS-232 (full duplex, point-to-point communication)

1×RS-422/RS-485 (half-duplex/full-duplex, supports multi-point communication)

Baud rate: 300 bps to 115.2 kbps (configurable)

Protocol support: Modbus RTU (master/slave), universal ASCII protocol (custom protocol), COMLI protocol (data transmission protocol between ABB controllers)

Optoelectronic isolation: RS-422/RS-485 ports feature 500V electrical isolation to prevent ground loop interference

Module size: Conforms to the AC 800M standard module size (approximately 60mm × 120mm × 100mm)

Connector type: RS-232 uses a 9-pin D-sub female connector (DB9), while RS-422/RS-485 uses screw terminals or DB9 (depending on the version)

Environmental adaptability:

Operating temperature: -25°C to +70°C (industrial-grade wide temperature range)

Protection level: IP20 (must be installed inside the control cabinet)

Humidity range: 5%-95% non-condensing

Power supply method: Powered through the AC 800M backplane (24V DC)

Power consumption: approximately 2-5W (low-power design)

Plug and play: Supports hot plugging (subject to system limitations)

Automatic baud rate detection: capable of automatically matching the communication rate of the device

Diagnostic function: LED status indicator (power supply, communication status, fault alarm)

Redundancy support: Can be used with redundant systems (requires a redundant controller)

III. Product Features

Multi-protocol support: Ensures seamless integration with various automation devices, such as PLCs, HMIs, frequency converters, instruments, and more.

High-performance processing: Equipped with a high-performance processor, it can swiftly handle a vast amount of data exchange, catering to application scenarios demanding high real-time performance.

Flexible configuration: Users can flexibly configure modules through software tools, including setting parameters such as baud rate, data bits, stop bits, etc., to accommodate the communication needs of different devices.

Redundancy design: Supports redundant configurations to enhance system reliability and availability, ensuring smooth communication even in the event of a single failure.

Easy to integrate: The compact design facilitates installation and provides standardized interfaces, simplifying the system integration process.

IV. Application Fields

Industrial automation: Connect devices supporting serial communication, such as PLCs, HMIs, frequency converters, and instruments, to achieve data acquisition and remote monitoring.

SCADA system: used for data acquisition and remote monitoring of the SCADA system, enhancing the system's communication efficiency and reducing communication latency.

Multi-industry application: In industries such as petrochemical, power energy, machinery manufacturing, and food processing, the CI853K01 module can provide a solid communication foundation for automated control systems.
