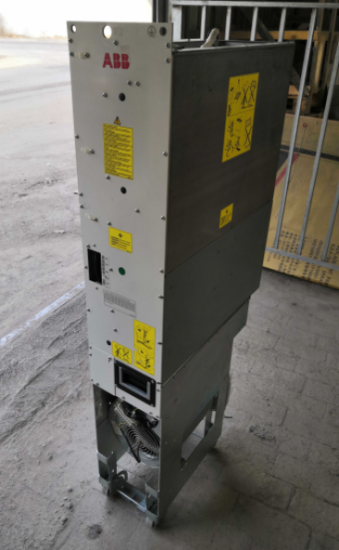

ABB ACS800-104-0580-7+C126+E205+V991 transducer

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

ACS800-104-0580-7+C126+E205+V991 is a high-performance frequency converter produced by ABB. It belongs to the ACS800 series and is suitable for multi motor collaborative control in industrial scenarios. It features direct torque control, redundant power supply design, Profibus DP communication interface, and supports high dynamic response and complex automation control requirements. ‌

1、 Model analysis

ACS800-104: indicates that the frequency converter belongs to ABB's ACS800 series, a standard industrial drive module.

0580: The rated output current is 580A, and the suitable motor power is about 355kW (at 400V) or 450kW (at 500V).

7: The cabinet size code needs to refer to the ABB manual to confirm the specific physical installation dimensions.

C126: It may be an input reactor or filter option used to improve power factor and reduce harmonic interference.

E205: Built in EMC filter, suitable for industrial environments, reduces electromagnetic interference.

V991: Cooling fan component, usually designed for forced air cooling, used for heat dissipation of high-power modules.

2、 Key technical parameters

Electrical characteristics:

Input voltage: 3-phase 380-480V AC, 50/60Hz.

Output power: approximately 355kW at 400V and approximately 450kW at 500V.

Output current: 580A (continuous rated value).

Overload capacity: Usually 150% overload for 1 minute.

Protection level: IP21 (default, cabinet installation may be upgraded to a higher level).

Control method:

Direct Torque Control (DTC): Supports high dynamic response and is suitable for scenarios that require rapid torque adjustment.

Scalar V/f control: suitable for simple speed regulation requirements.

Multiple application macros, such as factory macros, PID control macros, etc., simplify configuration.

Communication and Expansion:

Profibus DP bus interface: supports adaptive rates from 9.6kBit/s to 12MBit/s.

Optional fieldbus: such as Modbus, etc. (requires additional modules).

Digital/Analog I/O: Standard analog/digital input/output, compatible with industrial automation control requirements.

Mechanical and installation:

Cooling method: forced air cooling (V991 fan assembly).

Operating temperature: 0~40 ° C (higher temperatures require derating).

Storage temperature: -40~70 ° C.

Installation method: 35mm standard industrial guide rail installation.

3、 Functional Features

High efficiency and energy saving:

The system efficiency is equal to the product of the frequency converter efficiency and the motor efficiency, and it is necessary to match the power reasonably to achieve efficient operation.

Support energy-saving program settings, adjust output according to load, and reduce energy consumption.

Reliability and redundancy design:

DC9-36V redundant dual power supply: supports reverse protection and DC 1500V isolation, enhancing power supply stability.

Protection functions: 4kV lightning protection, 1.5A overcurrent protection, and 600W surge protection.

Compatibility and Scalability:

It is necessary to match the common DC bus rectifier unit (such as ACS800-704 series).

Support external brake units (if not built-in).

Compatible with ABB ControlLogix series PLC to achieve complex control tasks.

4、 Application scenarios

Industrial automation:

High power industrial equipment such as metallurgy and mining require multi motor collaborative control.

Process optimization, such as in industries such as papermaking, textiles, and machine tools.

Energy and Infrastructure:

Variable frequency speed regulation of equipment such as fans and pumps to achieve energy-saving operation.

Power generation equipment, such as gas turbines, hydropower, etc.

Complex control tasks:

Scenarios that require collaboration with PLC to achieve automation control, such as production lines, robots, etc.

5、 Selection and usage suggestions

Power matching:

When the power value of the frequency converter is equivalent to that of the motor, the efficiency is highest.

When the electric motor frequently starts, brakes, or starts under heavy load, a one level larger frequency converter can be selected.

Grid compatibility:

If the input reactor (such as C126) is not configured, it is necessary to monitor the total harmonic distortion (THD) of the power grid to avoid interference with other equipment.

Maintenance and Upgrade:

V991 is an old version hardware, it is recommended to confirm its compatibility with the current system through ABB technical support.

Regularly inspect vulnerable parts such as fans and capacitors to ensure long-term stable operation.
