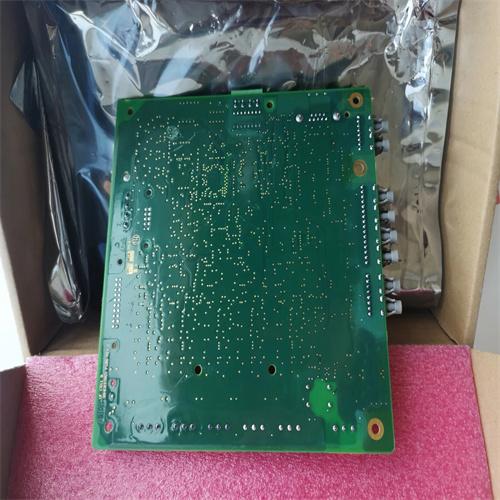

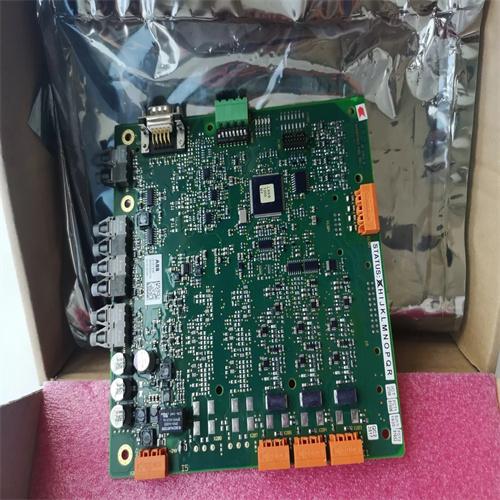

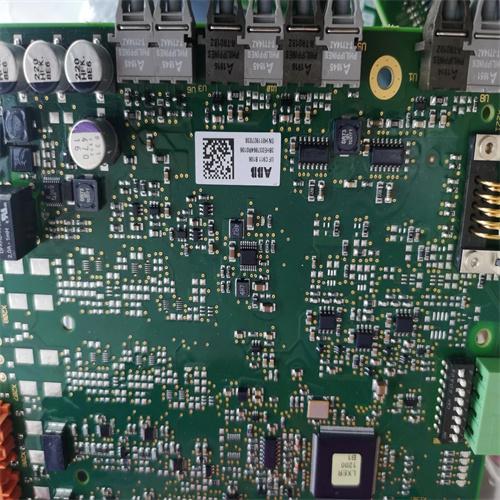

ABB 3BHE037864R0106 industrial controller

Sales manager: Vicky.xia Email: vicky@kerienplc.com Mob(Whatsapp/Wechat) :+ 86 13695017671 QQ：259680581 Skype :+ 86 13695017671

3BHE037864R0106 is a high-performance industrial controller from ABB UFC911 series:

1、 Core functions

Multi axis servo control:

Support 1-8 axis stepper motor or servo motor control to achieve simultaneous or different motion control.

Built in PID and feedforward control algorithms solve the problems of tracking error and steady-state error, improving control accuracy.

Using IMC ASIC chip, the displacement of each axis is uniformly sent out through PGE (Pulse Generator) based on DDA principle, achieving up to eight axis servo positioning and same/different motion control.

Signal processing and logic control:

Supports multiple digital inputs/outputs (DI/DO), suitable for direct connection with sensors and actuators.

Supports analog input/output (AI/AO) for high-precision signal processing.

Built in high-performance industrial grade processor, suitable for real-time control tasks.

Communication interface management:

Provide Ethernet interface for fast data transmission and remote management.

Supports RS232/RS485 serial interface for easy communication with external devices or systems.

Support industrial bus expansion, such as Profibus, CAN bus, etc.

Redundancy and reliability design:

Supports redundant configuration and can be used in conjunction with E205 module to reduce downtime risk.

Equipped with overcurrent, overvoltage, undervoltage protection, and temperature monitoring functions to ensure stable system operation.

2、 Technical parameters

Processor: Embedded high-performance industrial grade processor, paired with hardware dual floating point dedicated motion control IC.

Memory: Supports large capacity storage, capable of storing system configuration and real-time operational data.

Input voltage: 24V DC (industry standard).

Working temperature: -20 ° C to+60 ° C (up to+70 ° C in some scenarios).

Protection level: IP20 (compliant with dust and moisture resistance standards for industrial equipment).

Communication protocol: Supports industrial communication protocols such as Modbus, Profibus, CAN bus, etc.

3、 Application scenarios

Industrial automation:

Control the motors, valves, robots, and other equipment on the production line to achieve precise positioning and synchronous control.

Example: Coordinated control of welding robots in automotive assembly lines.

Electricity and Energy:

Used for power grid monitoring, generator control, and substation automation to enhance system stability.

Example: Variable pitch system control in wind farms.

Multi axis precision control:

Supports 1-8 axis stepper motor or servo motor control, suitable for scenarios that require high-precision synchronous control.

Examples: CNC machine tools, packaging machinery, printing equipment.

Industrial Internet:

Integrate into DCS or SCADA systems to achieve real-time monitoring of production data, fault diagnosis, and predictive maintenance.

Example: Upload data to the cloud platform through Ethernet interface, supporting big data analysis.

4、 Selection and configuration suggestions

Basic configuration:

Select the 3BHE037864R0106 module that is compatible with the motor power (such as the high-power version corresponding to a 315kW motor).

Confirm the power supply voltage (400V/500V/690V) and input signal type (such as 0-10V/4-20mA).

Expansion module selection:

E205 module: If redundant control is required, choose the E205 module that supports hot backup to improve system reliability.

Q950 module: In high inertia loads or frequent start stop scenarios, configure a braking resistor module to prevent DC bus overvoltage.

V991 module: When the industrial Internet function is required, select the V991 module that supports Ethernet communication and cloud connection.

Communication protocol support:

Select compatible protocols (such as Modbus TCP, Profinet) based on the upper computer system (such as PLC, SCADA).
